For machines of brands: AYP/ROPER/SEARS 917.254520 YT14 HUSQVARNA LT125 LTH1538 YT120 YT125 Substitutes the original reference: AYP/ROPER/SEARS 125907X 532125907 OREGON 75-171 PRIME LINE 7-07800 7-4H900 STENS 248-090 265-009 SUNBELT B1RS15

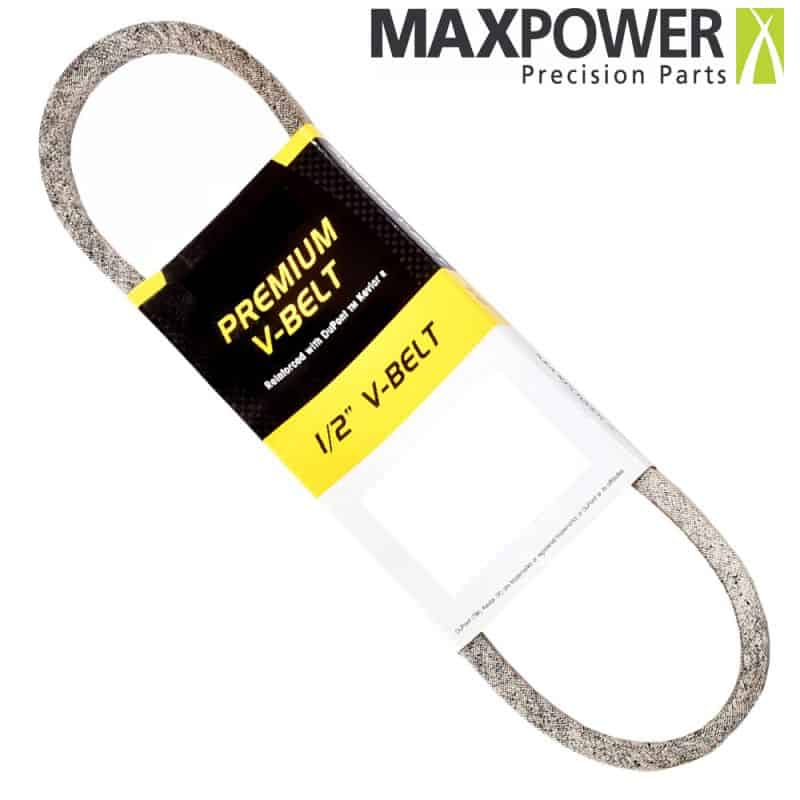

MaxPower Premium Kevlar® V-belts are reinforced with DuPont™ Kevlar® fiber. The cords integrated into the mass of the belt make KEVLAR Maxpower belts ideal for tough uses and severe work cycles. Our belts feature a drier fabric coating to increase flexibility and withstand severe clutch action, bending or twisting. They can also support heavy loads and return applications for power take-off clutch or turbine. These belts are also particularly resistant to the heat generated by gardening machines during use. They are individually packaged for better storage and are available in widths of 3/8" (9.5mm), 1/2" (12.7mm) and 5/8" (15.87mm).
To be sure of the correct length of the 4L (or 4H) type belt, you need to measure the length of the inside of the belt (or the passage on the pulleys) and divide this length by 1 inch or 2.54 then add 2. Example: The inner measurement of my belt is 104.14mm. I divide 104.14/2.54 which is 41, so my belt will be a 4H430 (4H because it has a 12.7mm back and 430 because it corresponds to 41+2)
MaxPower Premium Kevlar® V-belts are reinforced with DuPont™ Kevlar® fiber. The cords integrated into the mass of the belt make KEVLAR Maxpower belts ideal for tough uses and severe work cycles. Our belts feature a drier fabric coating to increase flexibility and withstand severe clutch action, bending or twisting. They can also support heavy loads and return applications for power take-off clutch or turbine. These belts are also particularly resistant to the heat generated by gardening machines during use. They are individually packaged for better storage and are available in widths of 3/8" (9.5mm), 1/2" (12.7mm) and 5/8" (15.87mm).
To be sure of the correct length of the 4L (or 4H) type belt, you need to measure the length of the inside of the belt (or the passage on the pulleys) and divide this length by 1 inch or 2.54 then add 2. Example: The inner measurement of my belt is 104.14mm. I divide 104.14/2.54 which is 41, so my belt will be a 4H430 (4H because it has a 12.7mm back and 430 because it corresponds to 41+2)
4H900
Specific References
