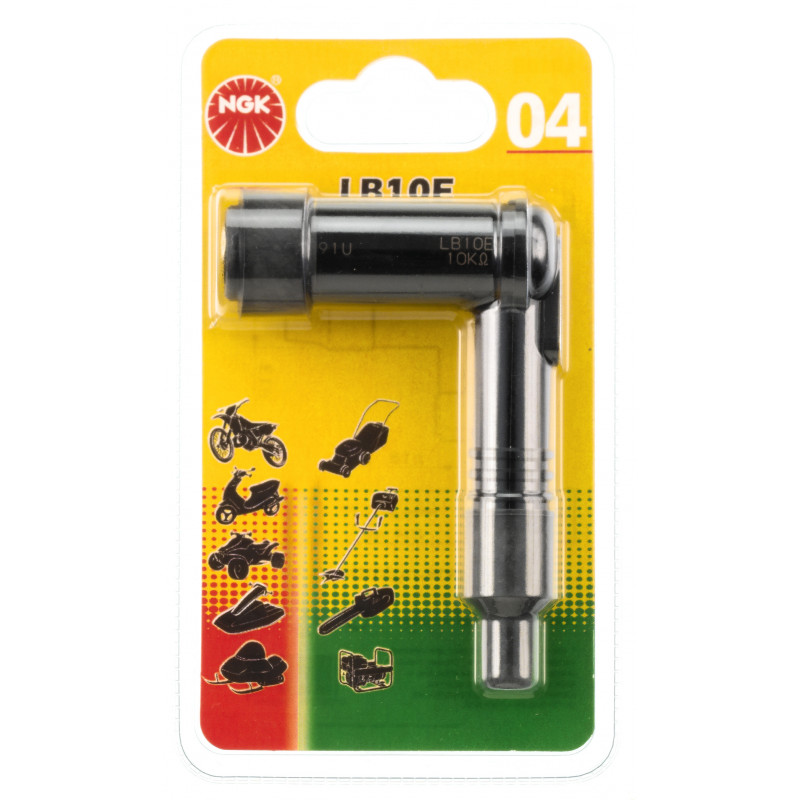

Suppressor LB10EBL BL1NO4 BLISTER NGK

How to identify the antiparasitic?

The first letter indicates the shape

• L: 90° elbow
• S: Right
• X: 102° elbow
• V: Long 120° elbow
• Y: Short 120° elbow
• T: Type T

The second letter indicates the thread diameter

• B: Diameter 14mm
• C: Diameter 10mm
• D: Diameter 10 and 12mm
• Z: Diameter 10, 12, 14mm

The third indication which is the number, informs of its resistance

• Empty: 0 kilowatt
• 01: 1 kilowatt
• 05: 5 kilowatt
• 10:10 kW

The penultimate letter informs about the tip of the candle

• E: Tip with olive
• F: Tip without olive

The last letter indicates the appearance of the cap

• A: Special design
• F: For high voltage cable diameter 5 mm
• G: With gasket for motor volute
• H: Compact type
• K: Waterproof silicone seal
• L: Wirewound resistance
• M: Rubber sheath
• P: Special waterproof seal
• S: Armored
• Y: With gripping lug
• Z: Special Shape
