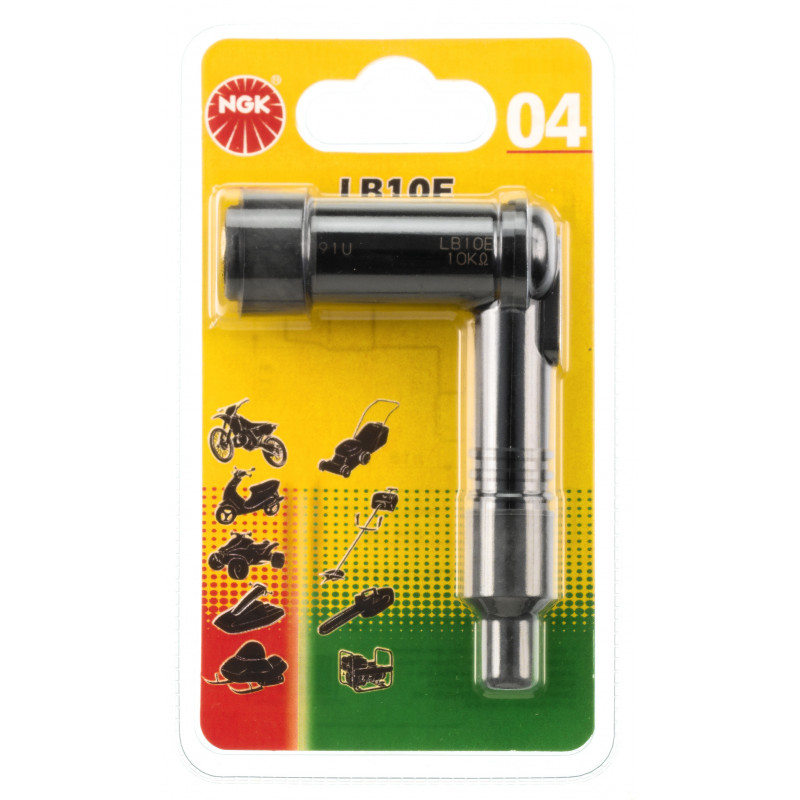

Spark plug cap LB10EBL BL1NO4 BLISTER NGK

How to identify the spark plug cap?

The first letter indicates the shape

• L: 90° elbow
• S: Straight
• X: 102° elbow
• V: Long 120° elbow
• Y: Short 120° elbow
• T: Type T

The second letter indicates the thread diameter

• B: Diameter 14mm
• C: Diameter 10mm
• D: Diameter 10 and 12mm
• Z: Diameter 10, 12, 14mm

The third indication, which is the number, informs about its resistance

• Empty: 0 kilowatt
• 01: 1 kilowatt
• 05: 5 kilowatt
• 10: 10 kilowatt

The penultimate letter indicates the spark plug tip

• E: Tip with olive
• F: Tip without olive

The last letter provides information about the cap appearance

• A: Special design
• F: For 5 mm diameter high-tension cable
• G: With seal for engine volute
• H: Compact type
• K: Watertight silicone seal
• L: Wound resistor
• M: Rubber sheath
• P: Special watertight seal
• S: Shielded
• Y: With gripping lug
• Z: Special Shape
