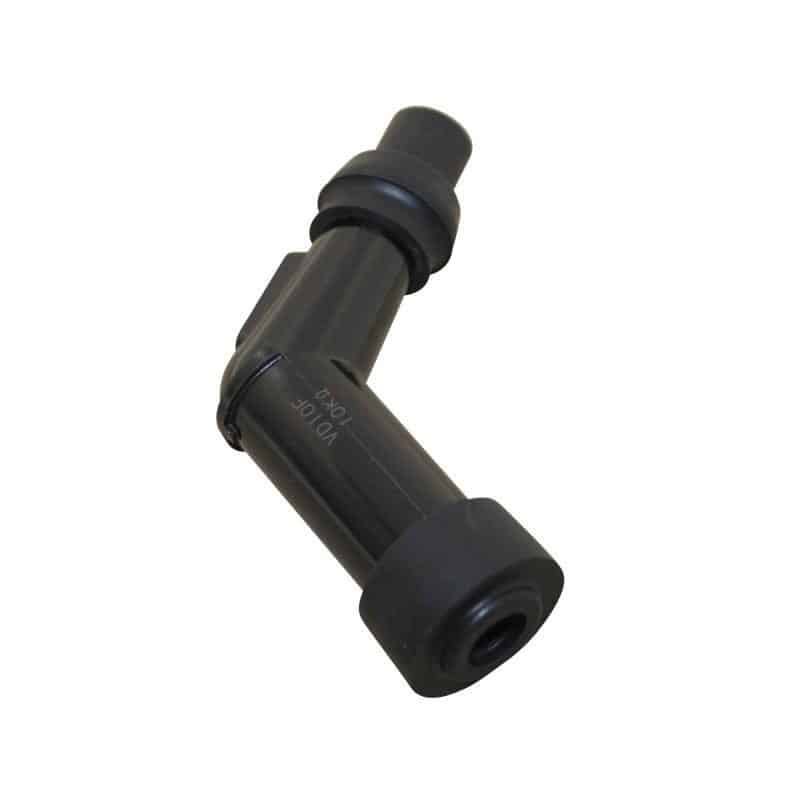

NGK VD10F Suppressor

How to identify the suppressor?

The first letter indicates the shape

• L: 90° bend
• S: Straight
• X: 102° bend
• V: Long 120° bend
• Y: Short 120° bend
• T: Type T

The second letter indicates the thread diameter

• B: 14mm diameter
• C: 10mm diameter
• D: 10 and 12mm diameter
• Z: 10, 12, 14mm diameter

The third indication, which is the number, informs about its resistance

• Empty: 0 kilowatt
• 01: 1 kilowatt
• 05: 5 kilowatt
• 10: 10 kilowatt

The penultimate letter informs about the spark plug tip

• E: End with olive
• F: End without olive

The last letter provides information about the cap appearance

• A: Special design
• F: For 5 mm diameter high voltage cable
• G: With seal for engine volute
• H: Compact type
• K: Waterproof silicone seal
• L: Wound resistance
• M: Rubber sheath
• P: Special waterproof seal
• S: Shielded
• Y: With gripping lug
• Z: Special shape
