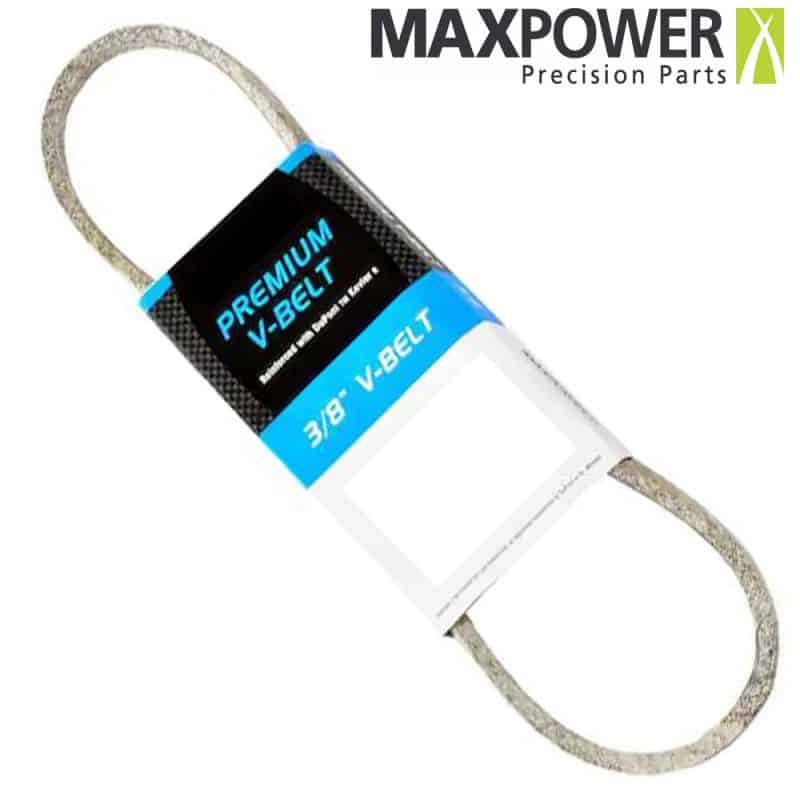

Belt for lawn mower, rotary tiller and garden tools, Belt back width: 9.5mm and thickness: 6mm, inner length: 73.66 mm
For machines of brands: MTD 642 644 Substitutes for the original reference: MTD 754-0346 954-0346 OREGON 75-091 PRIME LINE 7-07909 STENS 265-013 SUNBELT B1MT109 B1SB6950 WINDSOR 50-4935
MaxPower Premium Kevlar® V-belts are reinforced with DuPont™ Kevlar® fiber. The cords integrated into the mass of the belt make KEVLAR Maxpower belts ideal for demanding uses and severe work cycles. Our belts have a drier fabric coating to increase flexibility and withstand severe clutch action, bending or twisting. They can also support heavy loads and idler applications for power take-off clutch or turbine. These belts are also particularly resistant to the heat generated by gardening machines during use. They are individually packaged for better storage and are available in widths of 3/8" (9.5mm), 1/2" (12.7mm) and 5/8" (15.87mm).
To be sure of the correct length of the 3L (or 3H) type belt, you need to measure the length of the inside of the belt (or the passage over the pulleys) and divide this length by 1 inch or 2.54 then add 1. Example: The inside measurement of my belt is 104.14mm. I divide 104.14/2.54 which is 41, so my belt will be a 3H420 (3H because it has a 9.5mm back and 420 because it corresponds to 41+1)
