Belt for lawn mower, tiller and garden tools, Belt back width: 12.7mm and thickness: 8mm inner length: 187.96 mm
Substitutes for original reference: GREAT DANE D28030

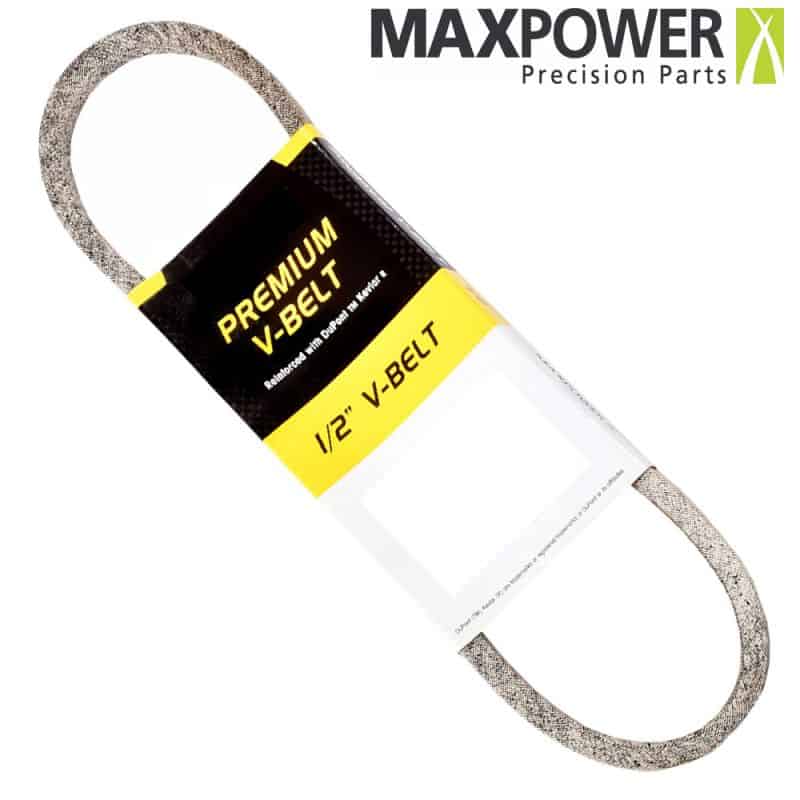

MaxPower Premium Kevlar® V-belts are reinforced with DuPont™ Kevlar® fiber. The cords integrated into the belt mass make KEVLAR Maxpower belts ideal for challenging uses and severe work cycles. Our belts feature a drier fabric coating to increase flexibility and withstand severe clutch action, bending or twisting. They can also support heavy loads and return applications for PTO clutch or turbine. These belts are also particularly resistant to heat generated by gardening machines during use. They are individually packaged for better storage and are available in widths of 3/8" (9.5mm), 1/2" (12.7mm) and 5/8" (15.87mm).
To ensure the correct length of the 4L (or 4H) type belt, measure the length of the inside of the belt (or the passage over the pulleys) and divide this length by 1 inch or 2.54 then add 2. Example: The inner measurement of my belt is 104.14mm. I divide 104.14/2.54 which is 41, my belt will therefore be a 4H430 (4H because it is 12.7mm back and 430 because it corresponds to 41+2)
