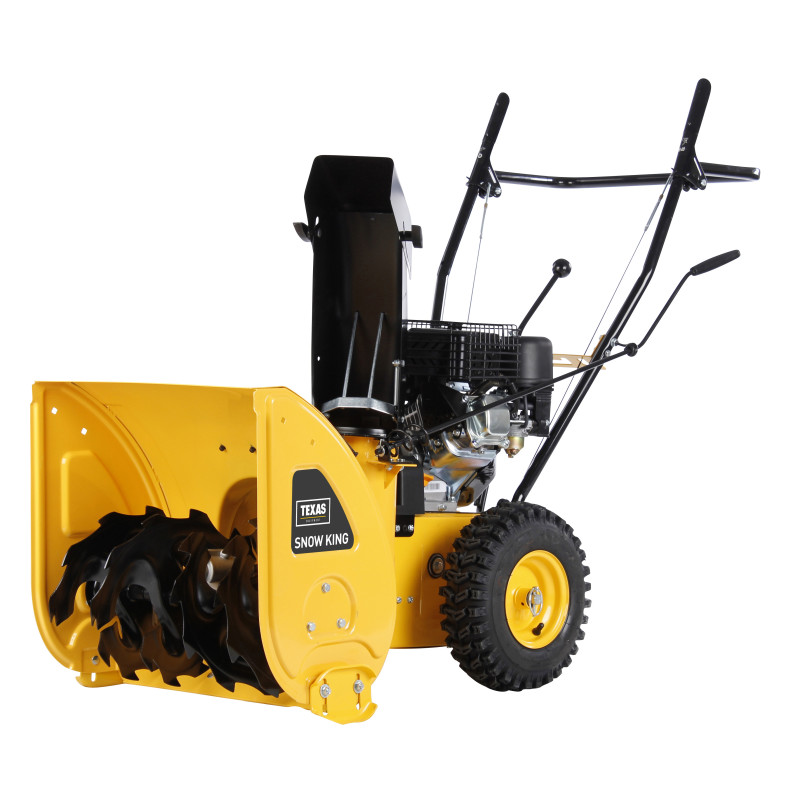

Texas Snow King 568TG Snow Thrower

Description
The Snow King 568TG is made from high-quality, robust material and designed for many hours of daily use.
This model, like other Snow King models, features a 2-stage ejection system that can throw snow up to 15 m away. The ejector can rotate 190 degrees, allowing the user to precisely adjust it in the desired direction.
With a working width of 56 cm and a working height of 51 cm, the machine can clear large amounts of snow in a short time.
User-focused
The Snow King 568TG is equipped with many clever details that make it very simple to use. This includes the large 13-inch snow tyres that ensure the snow blower's stability during operation, and the solid clutch handle on the handlebar is easy to use when the operator is wearing gloves.
The Snow King 568TG has an optimal weight distribution, with the engine positioned at the rear of the machine, which means the snow blower is easy to manoeuvre around corners and during transport.
The skid on the side of the snow blower can easily be adjusted to the desired distance between the auger and the ground.
Powerful gear type
Snow King 568TG is developed with a plate gear, which is an extremely stable and powerful gear type used by most snow blowers. A "safety bolt" is installed on the auger and it will detach if it hits a large stone. This safety measure is designed to protect the equipment.
There are three forward speeds and one reverse, so the operator can work at the precise desired speed. This makes the snow blower easy to manoeuvre in tight spaces.
Reliable engine
The Snow King 568TG is equipped with a robust and reliable 196 cc Loncin 4-stroke engine. This engine provides enough power to handle a large amount of snow.
Features
Starter: Recoil
Petrol/diesel: Petrol
Forward gears: 5
Weight: 75 kg
Box width: 90cm
Box length: 62cm
Box height: 78 cm
Engine type: 4-stroke
Reverse speeds: 2
Engine model: G200F
Working width: 56cm
Speed: 2.5-4.5 km/h
Wheel size: 13
Large air pressure rubber wheels: Inflatable rubber tyres
Throw distance: 8-15 m
Capacity: 1120 m2/hour
Clutch: Belt-driven worm gear
CC: 196 cc
Power: 4.1 kW at 3600 rpm
Engine oil: 0.6 litre
Tank capacity: 3.6 litres
Oil: SAE 30
Working height: 51 cm
Engine: Loncin
Handle vibration level: 4.65
Guaranteed LWA: 102
Ejection stages: 2
